ZWO FF80 APO Refractor Telescope

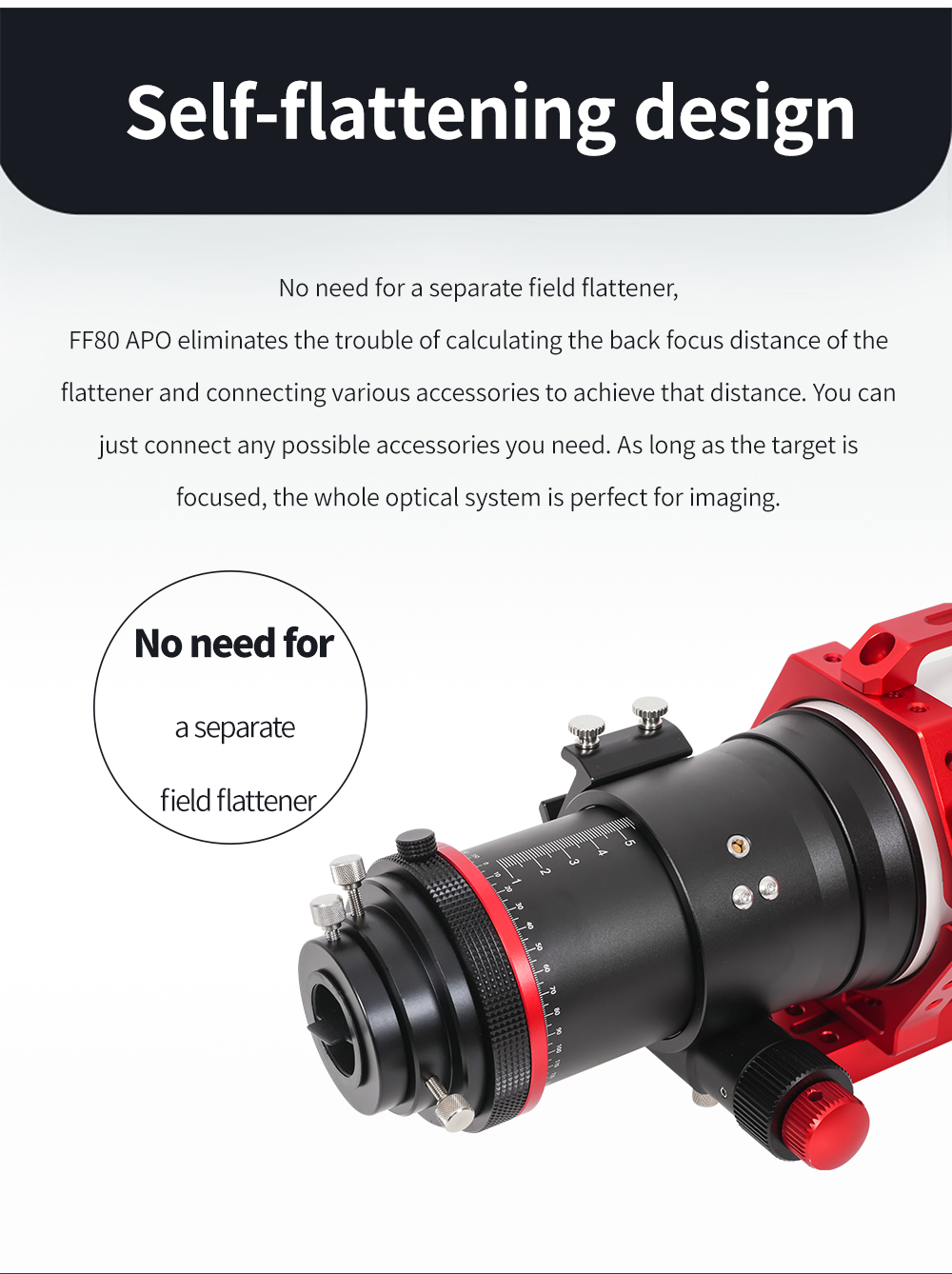

The ZWO FF80 APO is a refractive astrograph with the powerful flatfield optical design which saves you from the expensive cost of a field flattener. It eliminates the trouble of calculating the back focus distance of the flattener and connecting various accessories to achieve that distance. You can just connect any possible accessories you need. As long as the target is focused, the whole optical system is perfect for imaging. This makes the whole setting up process much more convenient, and saves your time, allowing you to pay more attention to the image shooting itself.

The FF80 APO is also a nice choice for your visual observation. It fits diagonals as well as various eyepieces and can achieve a perfect focus, and can even be used to observe planets with a super-high magnification eyepiece.
The whole design of the telescope is compact and lightweight. The OTA weighs only 3.9kg, and the full package with tube rings and other accessories weighs 4.7kg. It has an aperture of 80mm. The focal ratio is f/7.5 and focal length is 600mm.

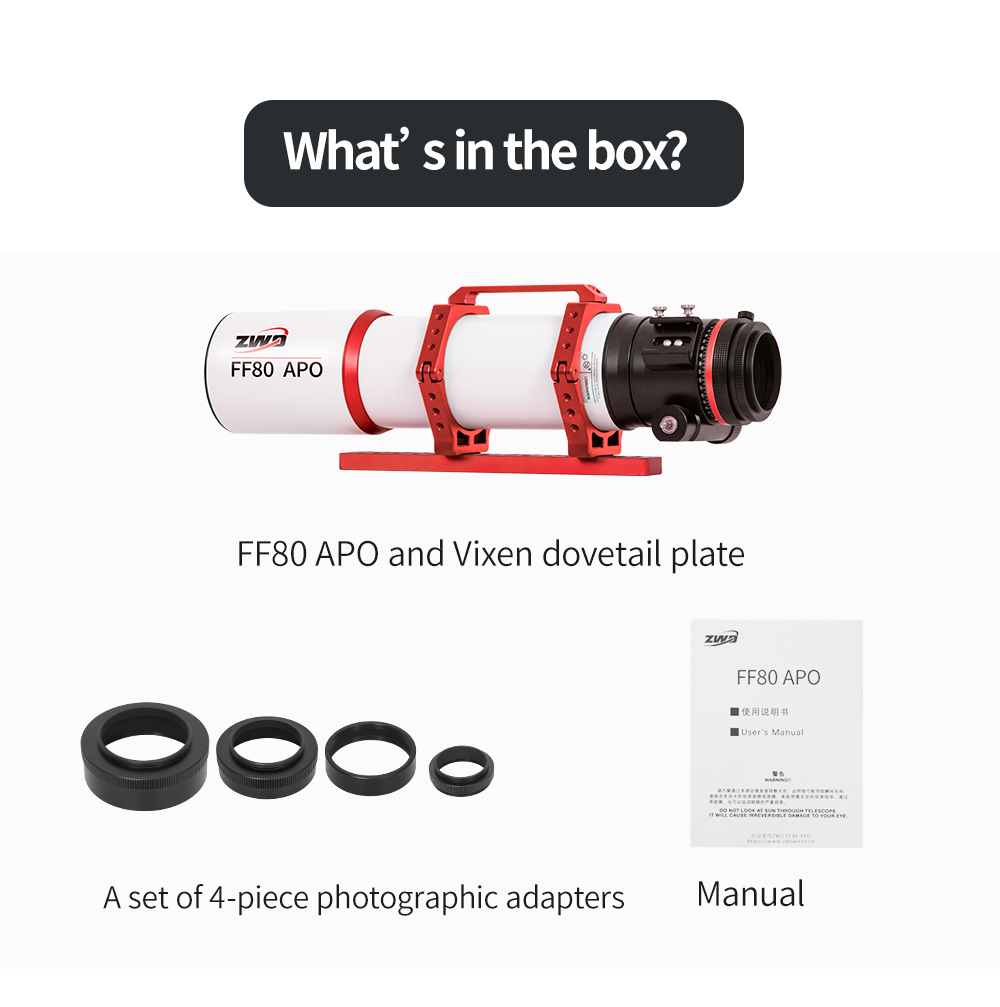

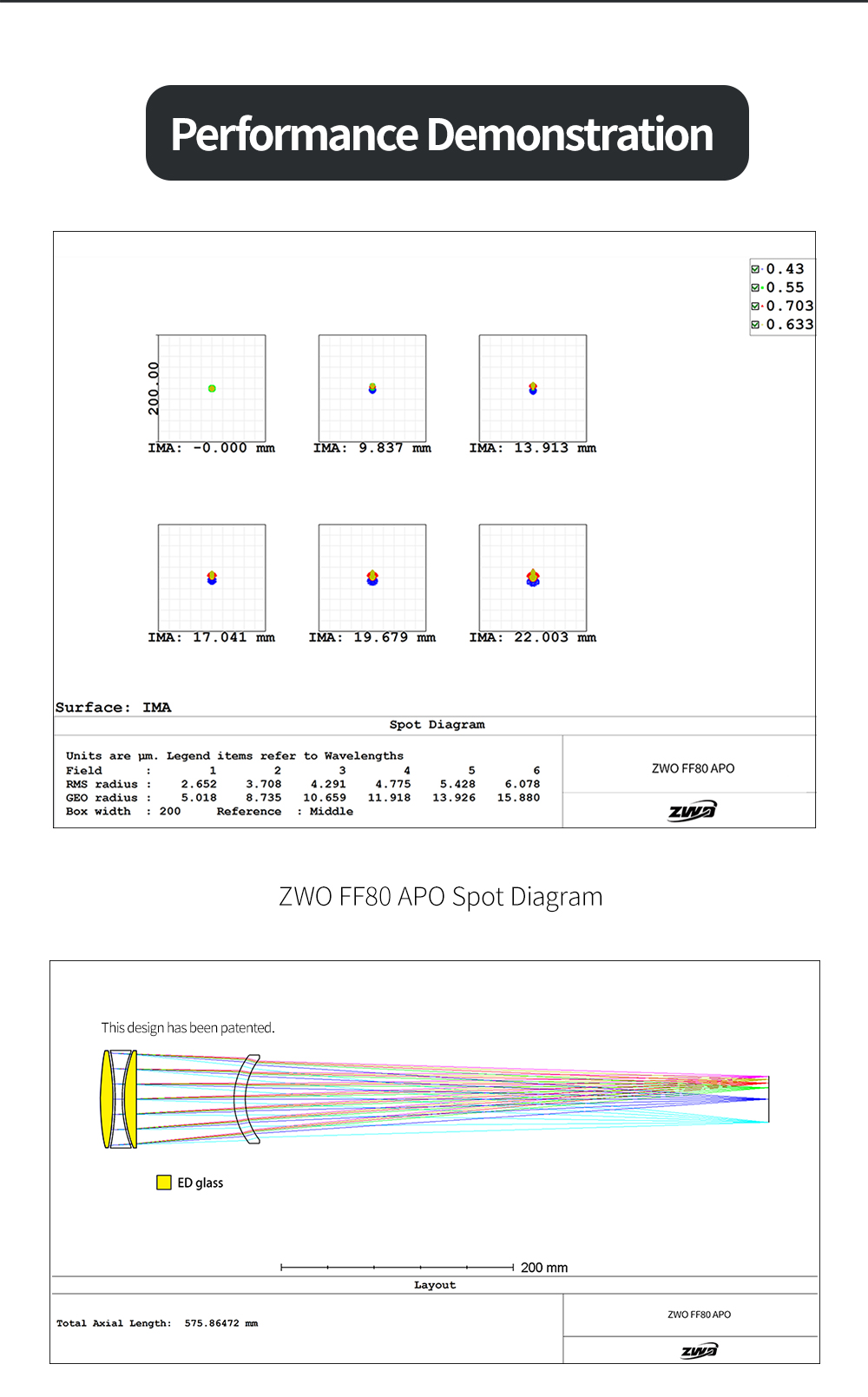

The FF80 APO adopts a 3+1 quadruplet lens structure which contains two pieces of ED glass that can effectively reduce chromatic aberration and enhance clarity and sharpness. It supports the full-frame imaging circle and has a fine spot diagram with tiny distortions of the peripheral stars. The 3″ rigid focuser comes with a new-type 360° rotator with scales and a finder base. M76, M68, M54, and M48 camera adapters are also attached, and the M48 adapter has a 2″ female thread for installing filters.

SPECIFICATION

Observing mode: 148mm
Aperture size: 80mm
Net weight: 3.9kg
Focal length: 600mm
Gross weight: 4.7Kg
Focal ratio: f/7.5
Image circle: 44mm
Objective lens: Quadruplet air-spaced APO (including two ED glass)

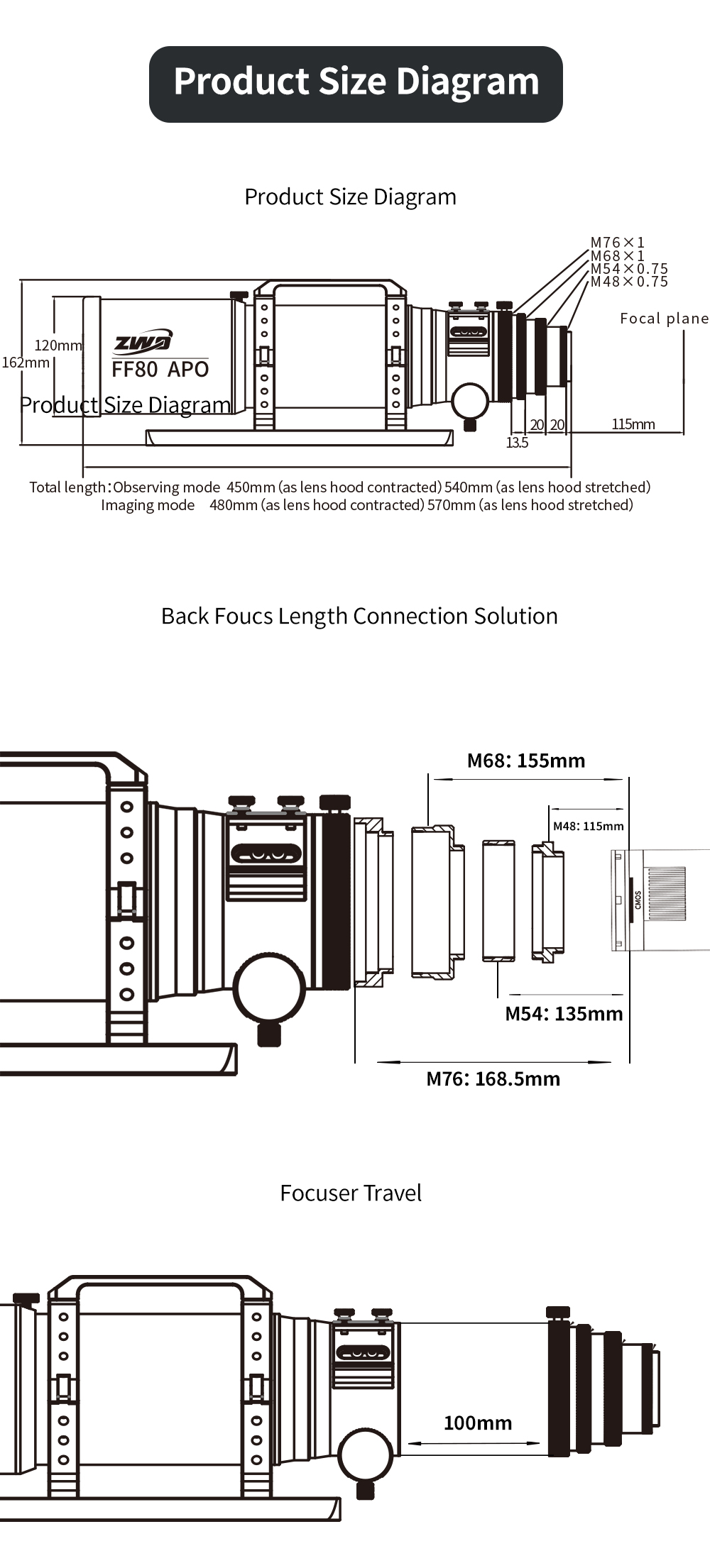

Imaging mode: 115mm (from the base of M48X0.75 male thread)
135mm(from the base of M54X0.75 male thread)
155mm(from the base of M68X 1male thread)
168.5mm (from the base of M76X1 male thread)
Rear-end thread type: M76×1-M68x1
M68x1-M54×0.75
M54×0.75-M54×0.75
M54×0.74-M48x0.75
(M48X0.75 filter thread inside)
Total length: 450 mm (including 1.25″ eyepiece holder as dew shield contracted)
480MM (including the 4 piece adapter as dew shield contracted)
540mm (including 1.25″ eyepiece holder as dew shield fully stretched)
570 MM (including the 4-piece adapter as dew shield fully stretched)
Rear end of the 4-piece photographic adapters: M48x0.75
