Product Description :

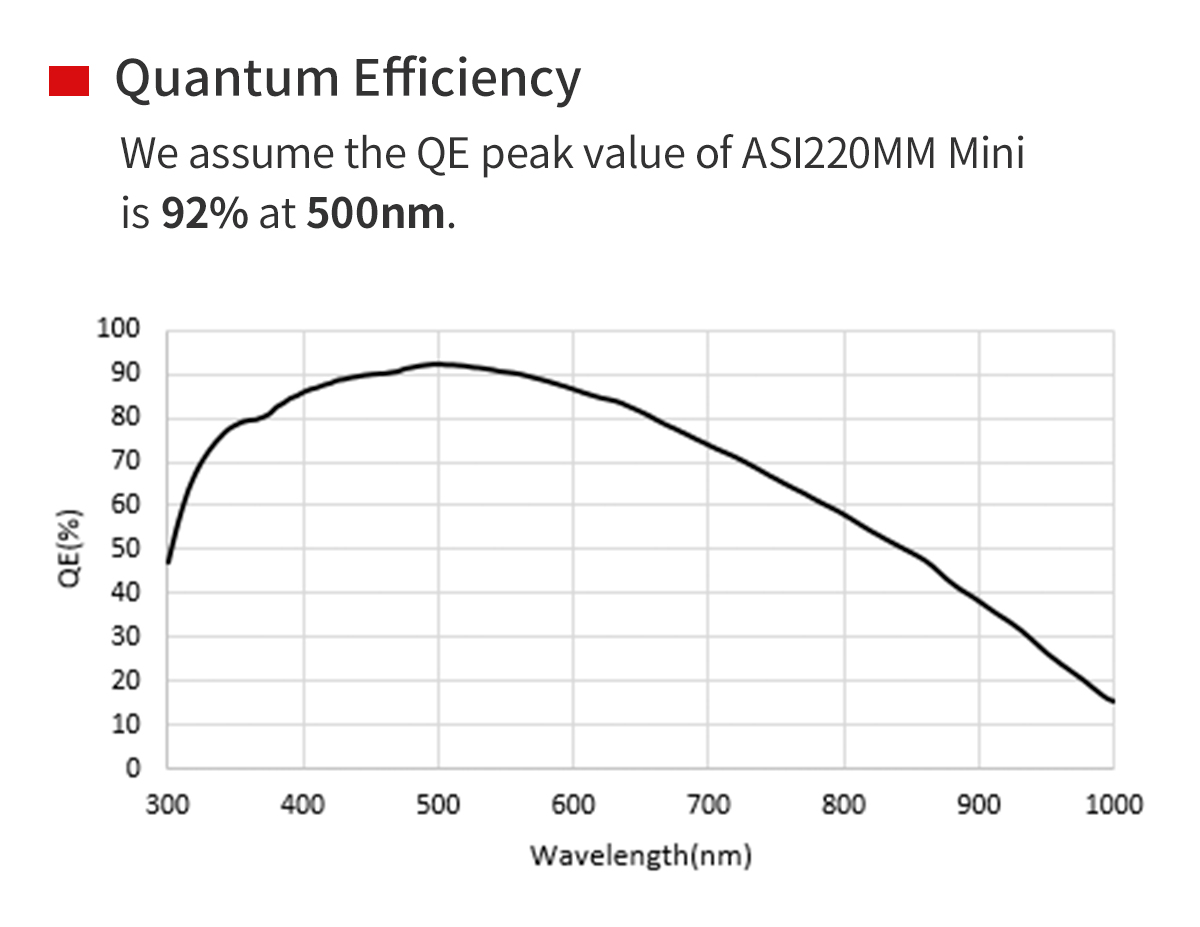

AS1220MM Mini camera integrates 1/1.8″ SC2210 sensor (7.68mm x 4.32 mm). It is a mono guide camera with excellent near infrared sensitivity.

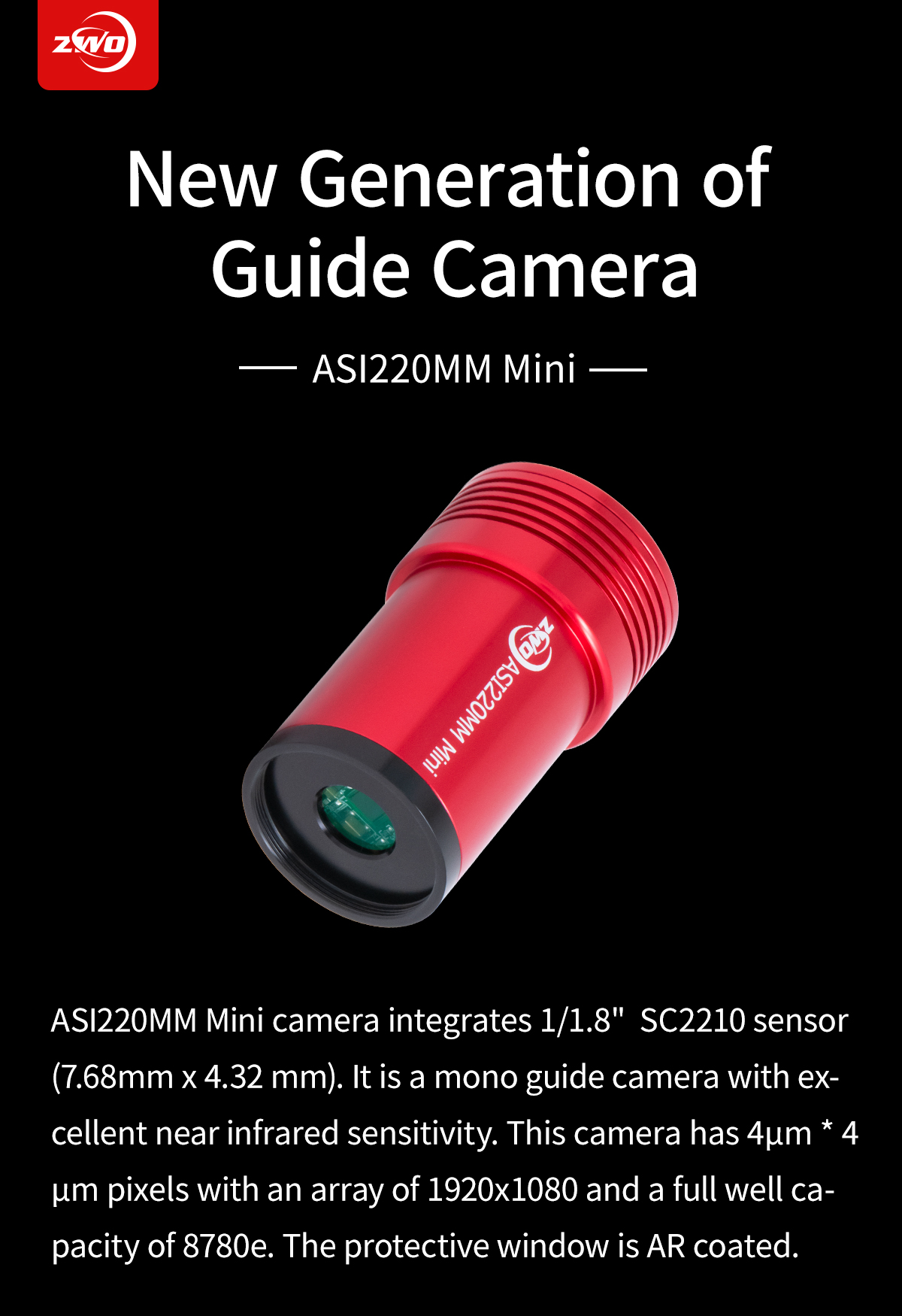

New Generation of

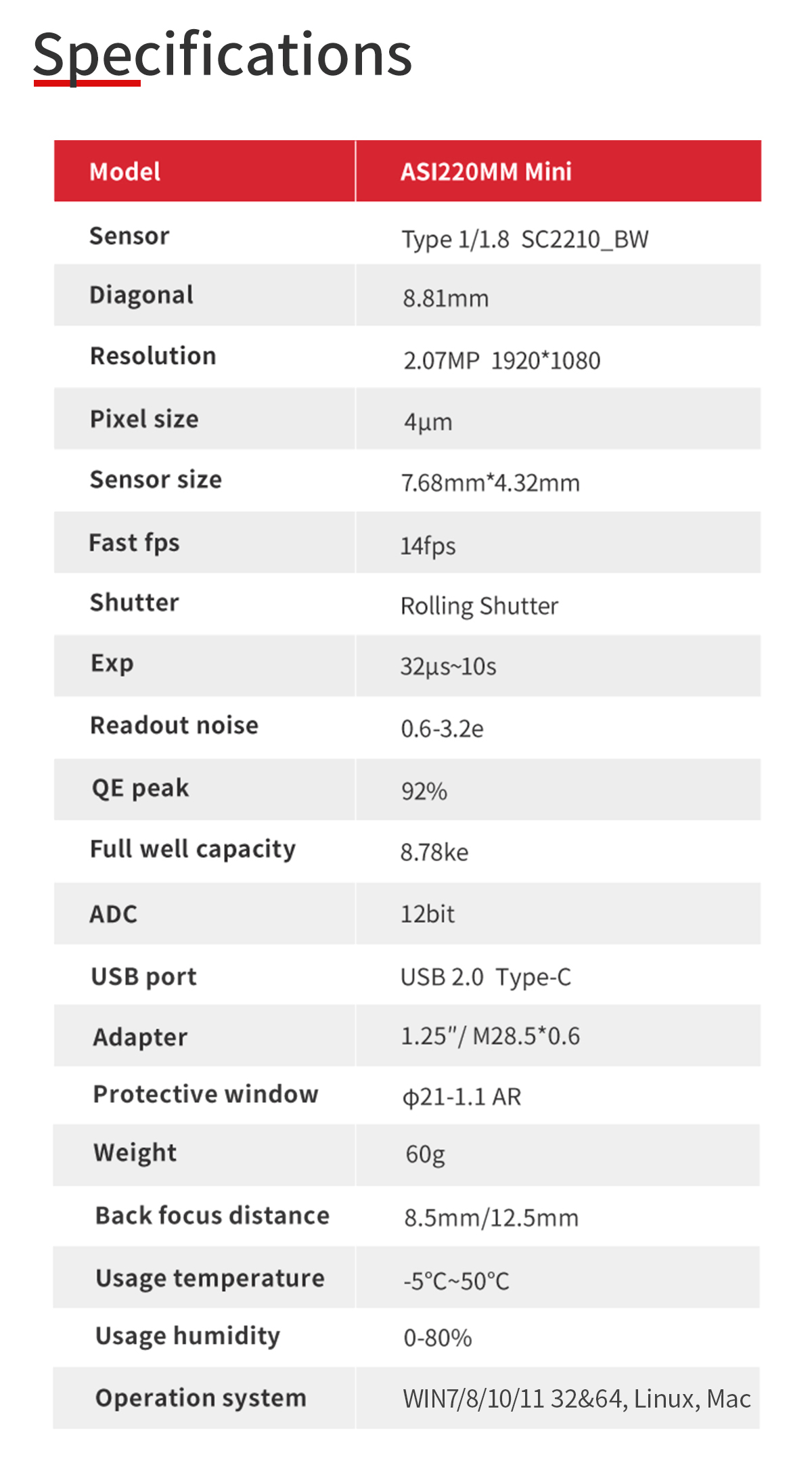

AS1220MM Mini camera integrates 1/1.8″ SC2210 sensor (7.68mm x 4.32 mm). It is a mono guide camera with excellent near infrared sensitivity. This camera has 4um * 4 um pixels with an array of 1920×1080 and a full well capacity of 8780e. The protective window is AR coated.

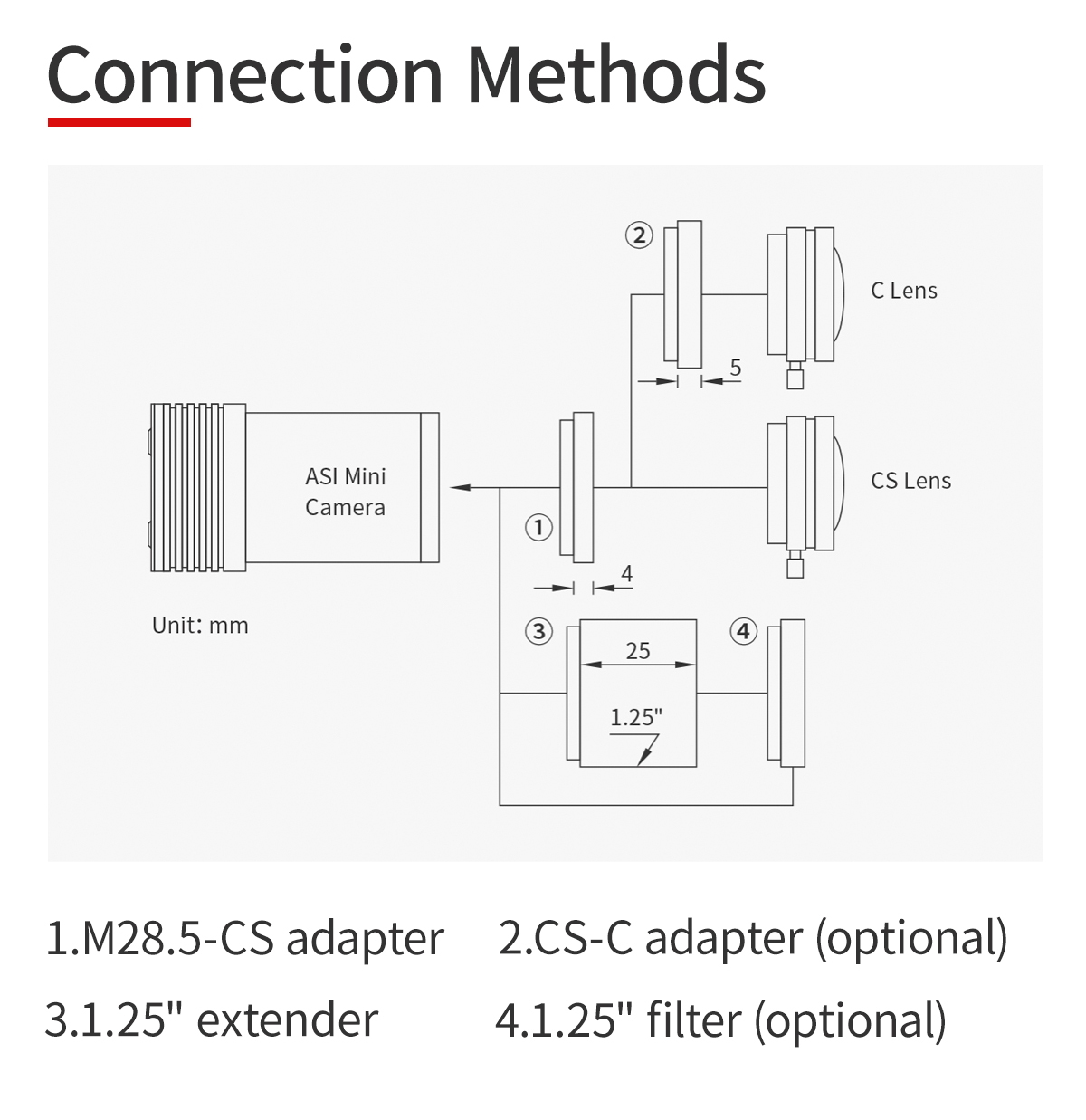

- M28.5-CS adapter 3. 1.25″ extender
- CS-S adapter(optional) 4. 1.25″ filter (optional)

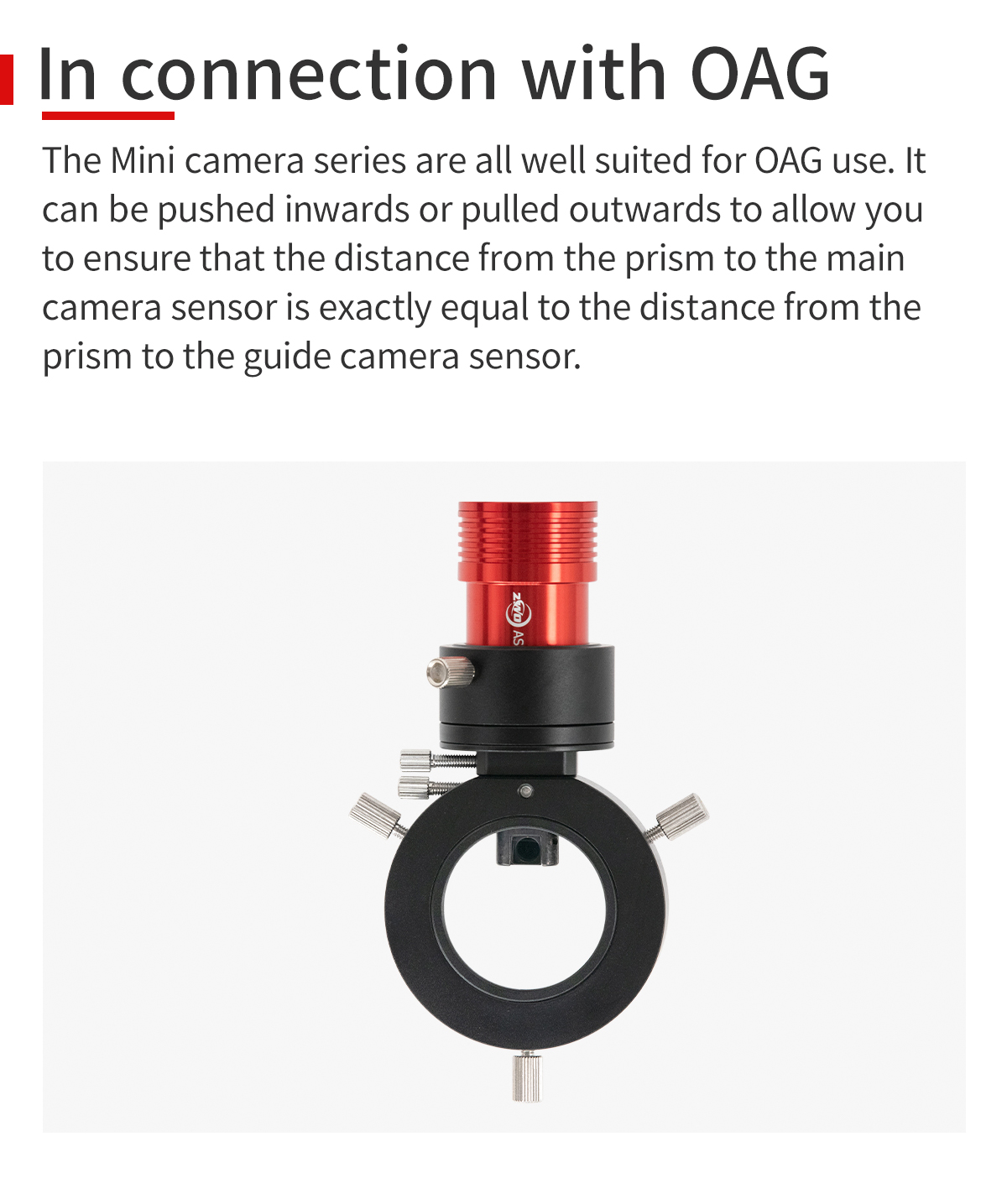

In connection with OAG
The Mini camera series are all well suited for OAG use. It can be pushed inwards or pulled outwards to allow you to ensure that the distance from the prism to the main camera sensor is exactly equal to the distance from the prism to the guide camera sensor.

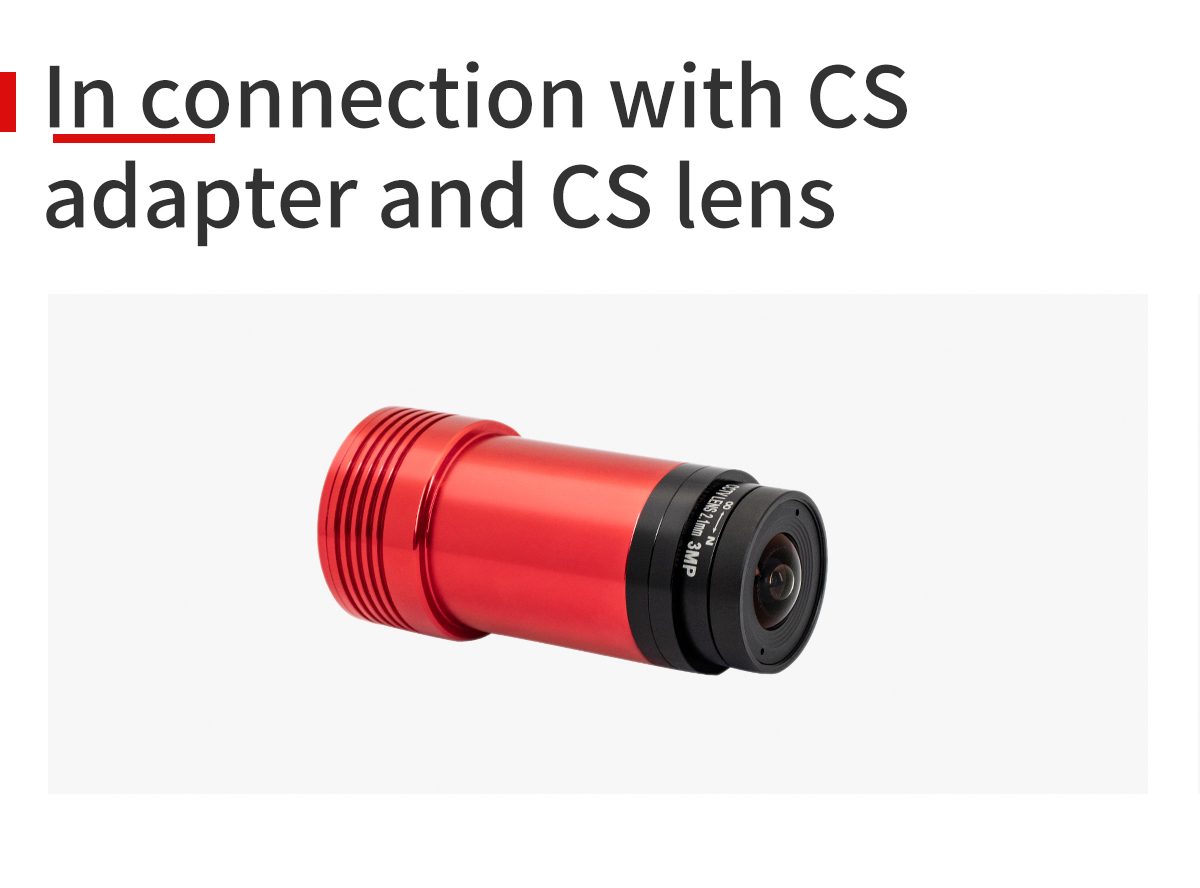

In connection with CS adapter and CS lens

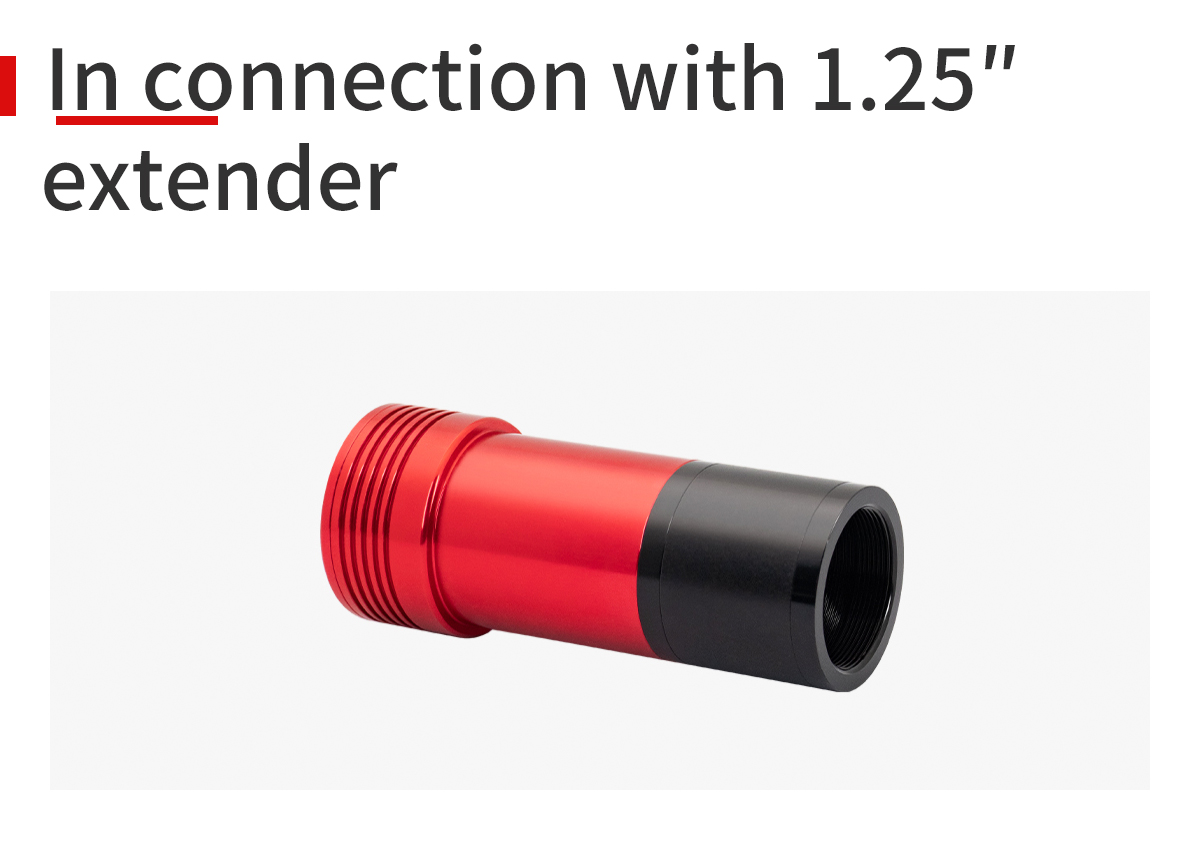

In connection with 1.25″ extender
ZWO is a world-renowned company focusing on the development ofinnovative products in the field of astrophotography. It is dedicated to the production of CMOS cameras, smart astro imaging devicesand astrophotography accessories. Our customers come from over 70countries and regions. Our developing history has exceeded over 10years, and our patents have been accumulated to 35 in total. ZWO in-novatively uses wireless technology to combine the mobile productsto astrophotography equipment, allows the wireless control of thegear, and brings a much more convenient and interesting imaging ex-perience to our customers.
Dec 2011, The world’s first planetary CMOS cameraASI130MM released.
Feb 2015, ZWO planetary CMOS camera ASI174 with the big-gest format in the world at that time released.
May 2016, ASI1600, which broke the CCD camera’slong-time leading position in DSO imaging released.
July 2018, ASIAIR released the smart WiFi device, which quickly became a game changer in the field of astrophotography.
Oct 2019, The second edition of ASIAIR – ASIAIR PRO released.
Dec 2019, Its first full-frame 16bit ADC cooled cameraASI6200 released.
Aug 2021, The third edition of ASIAIR – ASIAIR Plus released.
Dec 2021, AM5 strain wave geared drive mount released.
