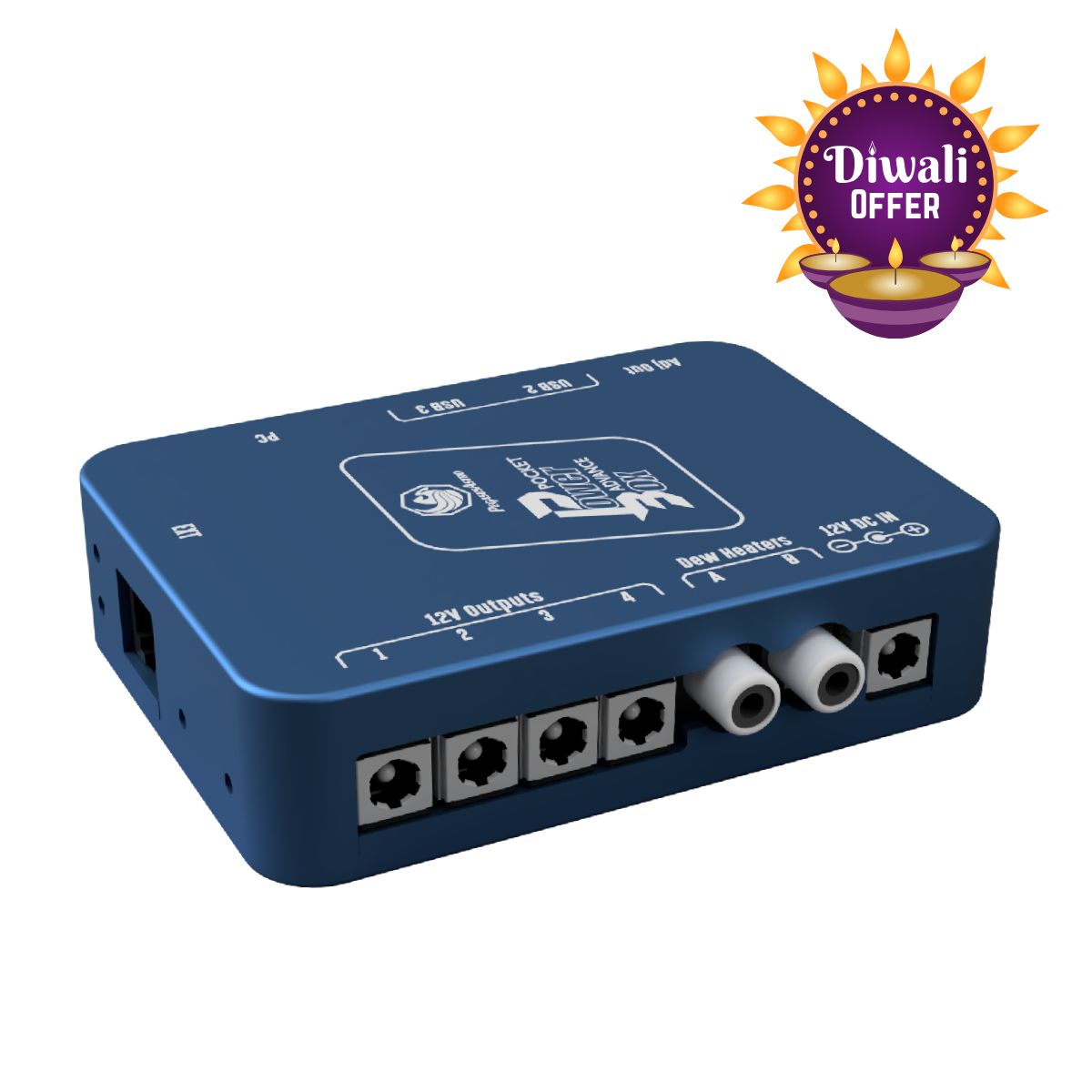

PegasusAstro Pocket Powerbox Advance Gen2
The Pocket Powerbox Advance, or PPBADV for short, represents a noteworthy addition to our esteemed Powerbox product series. Positioned strategically between the Pocket Powerbox Micro and the Ultimate Powerbox v2/3, it is engineered to offer enhanced capabilities, including a notable USB Hub that can accommodate up to four USB ports.
Feature List
4 x 12V DC Power ou tlets
Built in Voltmeter
Adjustable Regulated Output
Built in Amp-meter
Amp-meter placement after the DC input allows for the reporting of the total electric current, providing a comprehensive overview of power usage. In addition, three additional amp-meters are integrated into the system. One is dedicated to the 12V outputs, while two are designated for the Dew Heater Channels. This arrangement offers the convenience of monitoring both detailed and overall power consumption for your equipment.
More than 12A of total electric current
The powerbox has been designed to deliver a substantial electric current output of up to 12 Amps. It’s worth noting that a typical backyard astrophotography setup typically demands a range of 5-7 Amps for efficient operation.
Embedded USB3 Hub – 2 x USB3 & 2 x USB2 Ports
A powered USB3 Hub at the back of the device provides:
- 2 x USB3 SuperSpeed Ports
- 2 x USB2 High-Speed Ports.
The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.|
USB Port Configuration under PPBADV Gen2
- USB Port1 supports USB2 devices
- USB Port2 supports USB2 devices
- USB Port3 supports USB2 & USB3 devices
- USB Port4 supports USB2 & USB3 devices
* Older product revision (Gen1) had only 3 out of 4 USB Ports that were compatible to USB2 devices. For detailed information please check the product manual.
USB High Power Output
USB Port 1 provides up to 3Amps of current. You can connect any device that requires 5V. E.g a Raspberry PI 3/4 or Intel Compute Stick M3/M5 can receive power from this specific port.
Expansion Port (EXT)
EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Advance standalone software or dedicated ASCOM driver.
Other Key Features
Standalone Operation “out of the box”
Two channel duty cycle PWM outputs
Auto Adjustment of PWM (Dew Outputs)
More than 10A of total power
Led Indications for power and failure states
Reverse Polarity Protection
A hardware watchdog
Upgradable Firmware
Compact Aluminium Enclosure
The electronics of the Pocket Powerbox Advance are securely nestled within a sturdy, high-quality enclosure crafted from durable blue anodized aluminum.
Size is 100mm x 71mm x 24mm. Weights 250 grams.
Supported By :
ASCOM 6 Fully supported
INDI Fully supported
Unity Platform Support
Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.
Technical Specification
Supply Voltage | 12V – 13.8V DC |
Power Input Connector | DC 2.1mm (center positive) |
Connectivity | USB3 Type B Connector |
4 x 12 Outputs | Maximum Current 10 Amps in total. 2.1mm (center positive) Software: ON/OFF all ports |
2 Channel x 12 PWM Outputs | Maximum Current 5A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)
Software: Duty Cycle % / OFF
|
1x Sensor Input | RJ12 Socket, Connectivity with Environmental Sensor
0-100% humidity readings with 2-5% accuracy
|
Camera / DSLR Output | Max 3Amps, 3,5,8,9,12 Volt (Adjustable via software) 2.1mm (center positive) |
Voltmeter
|
Measures 5 – 15V |
Dimensions | 66mm x 66mm x 24mm |
Weight |
250 grams
|
In the Box
- 1 x Pocket Powerbox Advance Controller
- 1 x Temperature / Humidity Sensor
- 4 x Power DC 2.1mm to 2.1mm male cables (2x1m, 2×0.5m)
- 1 x USB3 Cable Type B (1.8m)
